BV5B-4DF-B 4 Way Flanged Ball Valve

SPECIFICATIONS
Available Material	CF8M
Working Pressure	DIN PN16/PN40/ANSI CL150
Ball Bore	Full
End Connection	DIN 2501 PN16/PN40/ANSI B16.5 CL150
Size Range	CF8M - 1/2" to 4 "
ISO Mount	Direct

ADDITIONAL APPLICATION
Operation	Handle/Actuator
Options	5 seats

undefined

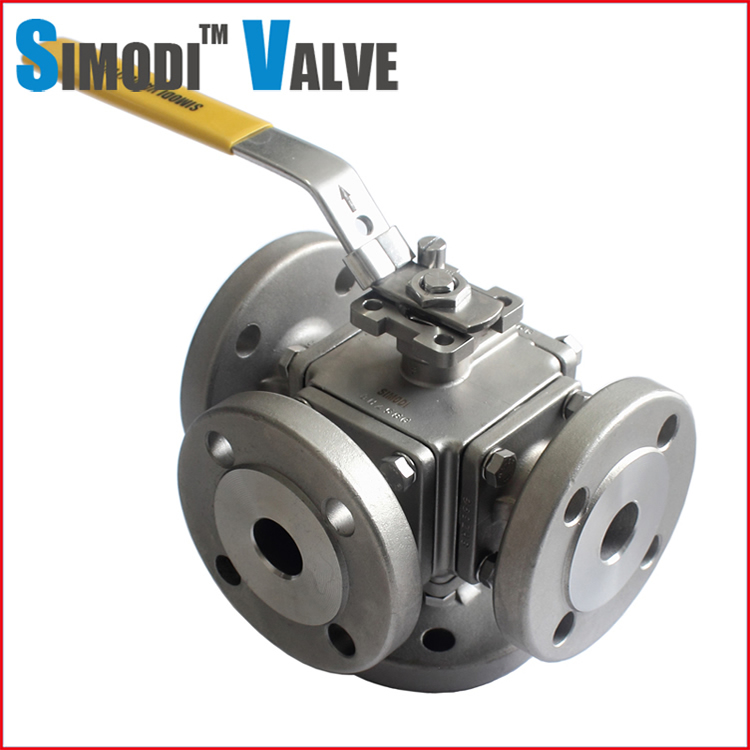

Four way flanged ball valve

undefined

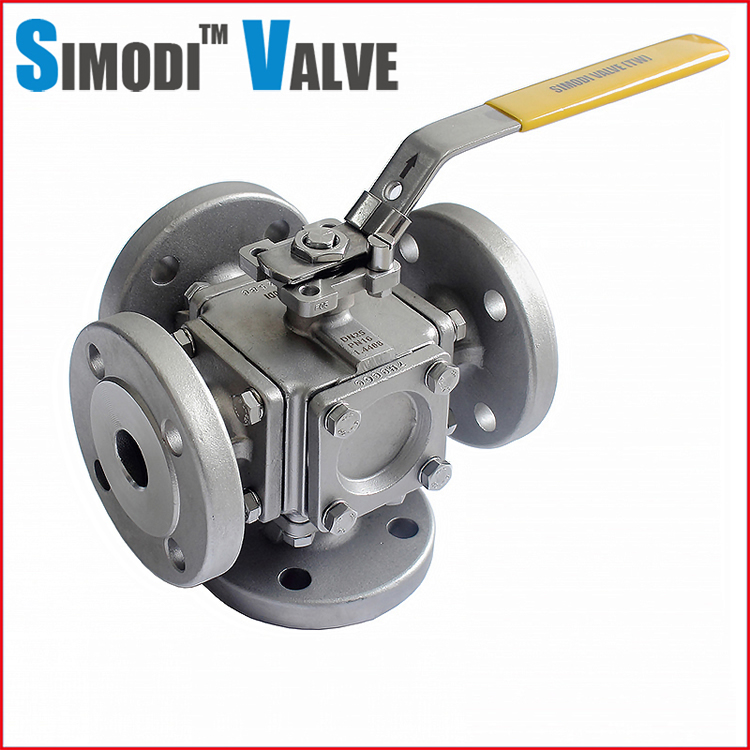

BV5B-4DF-B-PN16 4 Way Ball Valves

SPECIFICATIONS
* Working Pressure: 1/2”~6”PN16
* Temperature Range: -15～150℃(PTFE)
* Blow-Out-Proof Stem Design
* ISO5211 Direct-Mounting of Actuators of Valves Design
* Flange End: EN1092-1 TYPE 21
* Full port: LL/VL/TT/VT
* Operator: Lever/Actuator

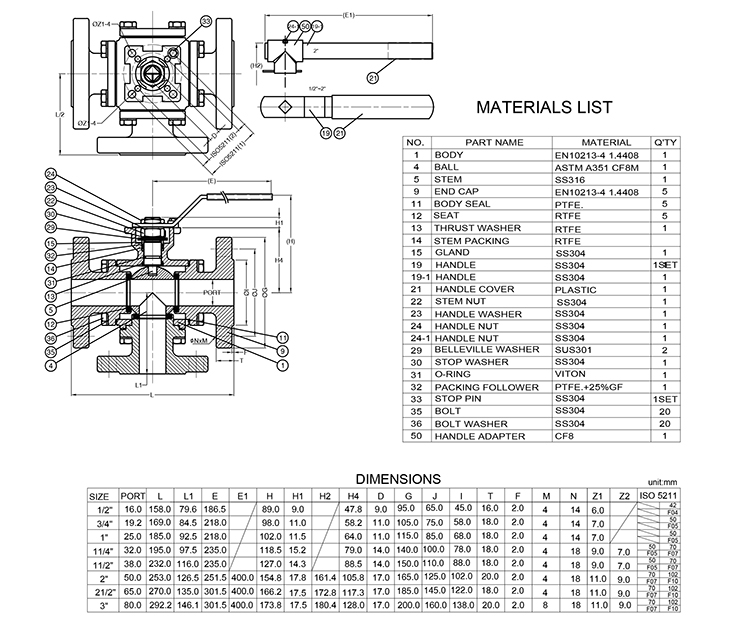

Drawing of four way ball valve

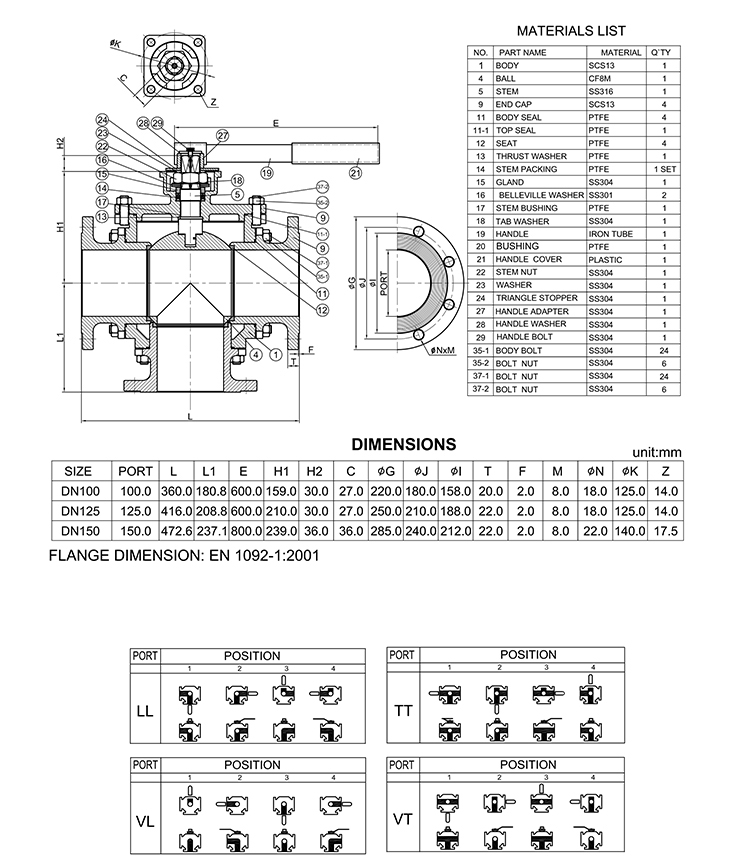

Drwaing of four way ball valve bv5b-4df-b
